Description
Product Structure
1.Facade of middle: 4 buttons-control massage functions;
2.Mid of inner: Scrapping massager-on foot arch, with heating function;
3.Front of inner: roller-on feet;
4.End of inner: kneading massage-on heel;
5.Under facade: air bags-air press massage on instep;
6.Bottom surface: Washable cloth cover-cleaning;
7.Bottom: Power plug;
Features and Schematic Diagram
This product has:
1. LCD screen, sense of science and technology.
2. The function of chi, controllable massage time.
3. The humanized design, provide customized memory function.
4. Low voltage work AC100V – 240 – v gm (using switch power adapter configuration).
5. Patent type foot cloth with quick release structure design.
Product Features
- Foot type design, fashion beautiful, light and portable.
- Set foot roller, scraping the delusion, kneading, air pressure, heating a variety of health care massage functions in one body.
- Real massage whole package, the acupuncture point massage depth, whole body meridian clear foot reflection zone.
- Can unpick and wash cloth, let you keep clean.
Schematic diagram

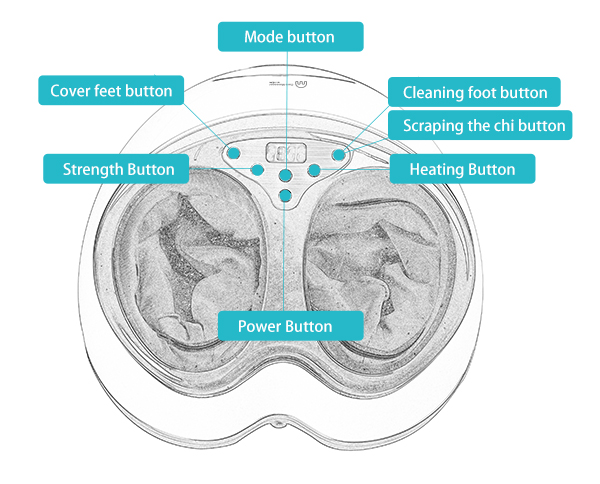

Operation and Function Explanation
Keys function is introduced:
Power button:
Open and close control of the whole machine function
Cover feet button:
Air pocket in the whole package scientific deflated, under the condition of your feet to squeeze the instep, arch infrared heating, warm feet warm heart health function
Strength Button:
Three kinds of intensity transformation can be realized. Red light is strong, alternating red and blue color for the middle-grade, blue light is weak.
Heating Button:
Heating function is separately. It is shows red when working. (enabled by default)
Mode button:
The machine in three kinds of massage mode automatically, red, red, blue and blue mix 3 kinds of color lights, red for curing mode, red and blue mixed color for balance mode, blue for roller model.
Scraping the chi button:
Sweetheart to scrape the foot massage, promote blood circulation. (This feature is part of the machine configuration)
Cleaning foot button:
Enable the foot air purification function. (This feature is part of the machine configuration)
Specifications
Name: | Foot massager |
Model: | CM-Z21 |
Rated Voltage: | DC24V/2.5A |
Rated Power: | 45W |
Time: | 5-30min |
Troubleshooting
The problem happened when using,solve them according to the following methods. If it is still in trouble, please send to the after sell centre or Authorized maintenance personnel to maintain.
Anomalies | Possible Cause | Approach |
Does not work | 1. no power2. power switch is turn off | 1. Set up an electric circuit2. Turn on power switch |
Stop working | 1. Power outage2. Massage time is over 15 Min
3. Keep working too long. The massager is overheating. 4. Excessive force, massager rollers cannot afford. |
1. Check electric circuit2. Turn on/off power again
3. Turn on/off the massager after cool. 4. Excessive force,massager rollers cannot afford. |
Maintenance
A. Store
- When not in using, the product into the box and placed in a safe, cool, ventilated and dry place.
- Do not twist the power and wires.
- Do not use a switching power supply and wire suspension products
- Avoid pointed object scratched the surface.
Do not place in direct sunlight or high humidity place.
B. Cleaning
- Turn off and unplug the power cord before cleaning,
- Using clean and dry cloth
- Do not use a switching power supply and wire suspension products
Note:Do not use corrosive cleaners, benzene or thinner.
C. Maintenance
- Keep massager cleaning and keep away from high humidity.
- If it is not used for a long time, use a dust cover to prevent dust from entering.
Our products have acquired the CE Certification and obtained the patent certificate.
Our foot massager have acquired the CE Certification 9276 | Vibration Platform Machine have acquired the CE Certification 9763 | Vibration Platform Machine have acquired the CE Certification 9764 |
Our Foot Massager has obtained the patent certificate. | Vibration Platform Machine has obtained the patent certificate |
