Foot Massage Machine For Plantar Fasciitis, Foot Massager (CM-Z19 Yellow) For Sale

Description

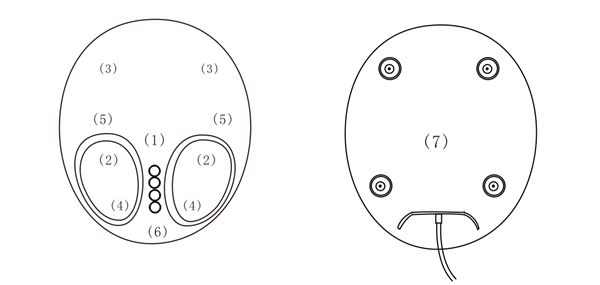

Product Structure

1. Facade of middle: 4 buttons-control massage functions;
2. Mid of inner: Scrapping massager-on foot arch, with heating function;
3. Front of inner: roller-on feet;
4. .End of inner: kneading massage-on heel;
5. Under facade: air bags-air press massage on instep;
6. Bottom surface: Washable cloth cover-cleaning;
7. Bottom: Power plug;

Features and Schematic Diagram

Features

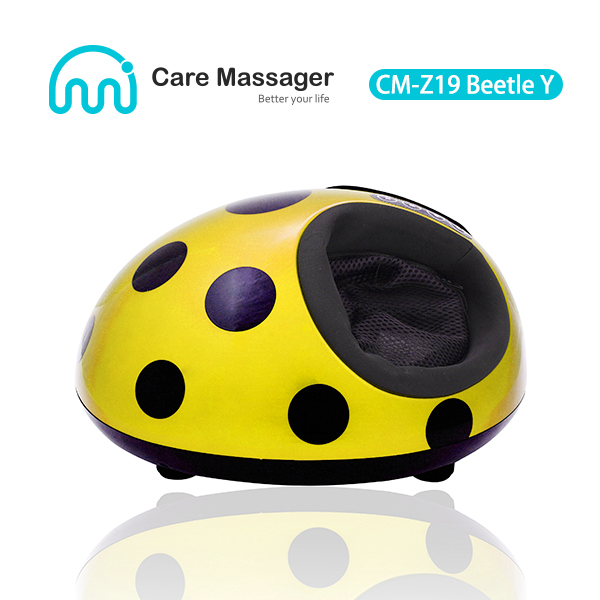

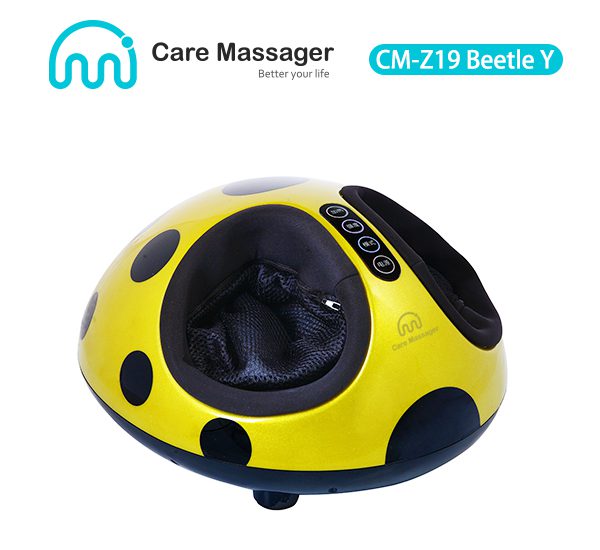

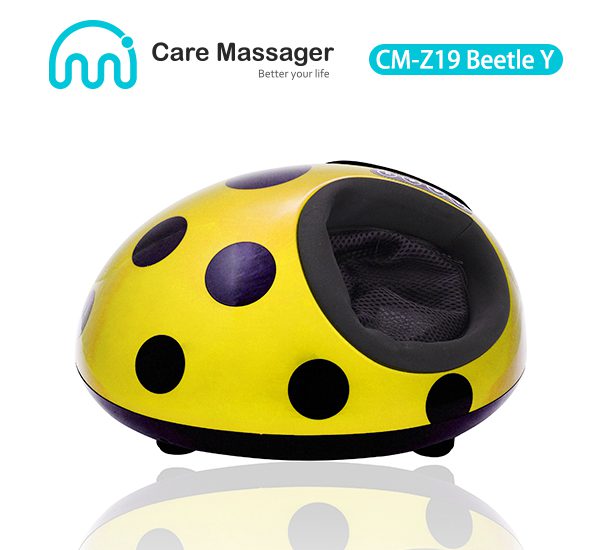

Foot Massager (CM-Z19 Yellow)

Foot Massager (CM-Z19 Yellow)

1. Beetle-shaped, beautiful and fashion, easy to carry;
2. A variety of functions with rolling, kneading, air-pressing and heating together;
3. Massage all points in foot;
4. Washable cloth cover, easy to keep clean;

Schematic diagram

Operating and Function Explanation

1. Press heating button after power is turned on, to turn off heating function; red light is turning off too.
2. Press strength button to transfer between strong and weak, blue is weak, red is strong.
3. Press mode button to transfer between too mode, blue is mode 1, red is mode 2, blue and red is mode 3.

Operation and Function Explanation

Foot Massager (CM-Z19 Beetle) Structure

Control button:

Heating — Heating Button

Heating function is separately. It is shows red when working, (enabled by default).

Strength — Strength Button

Adjust massage strength, red is strong, blue is weak, the red and blue is middle.

Mode — Mode Button

3 massage for choice, are blue light (closed rolling massage), red (mode 1), double color (model 2).

Power– Power Button

Turn on or Turn off

A. Before Using

Check if it is damaged or not

Check placing position is flat

B. Using

1. Open harness, one end connect to the bottom of massager, the other bottom connect to the outlet with 220v,5OHz
2. Operating press power button one time, function working (it show red), strength (it shows blue),mode is mode 1(it show with heating is weak blue).

Operating and Function Explanation

1. Press heating button after power is turned on, to turn off heating function; red light is turning off too.
2. Press strength button to transfer between strong and weak, blue is weak, red is strong.
3. Press mode button to transfer between too mode. Blue is mode 1, red is mode 2, blue and red is mode 3.

Specifications

Troubleshooting

The problem happened when using，solve them according to the following methods. If it is still in trouble, please send to the after sell centre or Authorized maintenance personnel to maintain.

Maintenance

A. Store

1. When not in using, the product into the box and placed in a safe, cool, ventilated and dry place.
2. Do not twist the power and wires.
3. Do not use a switching power supply and wire suspension products
4. Avoid pointed object scratched the surface.

Do not place in direct sunlight or high humidity place.

B. Cleaning

1. Turn off and unplug the power cord before cleaning，
2. Using clean and dry cloth
3. Do not use a switching power supply and wire suspension products

Note:Do not use corrosive cleaners, benzene or thinner.

C. Maintenance

1. Keep massager cleaning and keep away from high humidity.
2. If it is not used for a long time, use a dust cover to prevent dust from entering.

Our products have acquired the CE Certification and obtained the patent certificate.

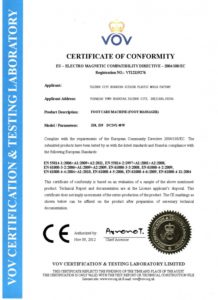

Our foot massager have acquired the CE Certification 9276	Vibration Platform Machine have acquired the CE Certification 9763	Vibration Platform Machine have acquired the CE Certification 9764

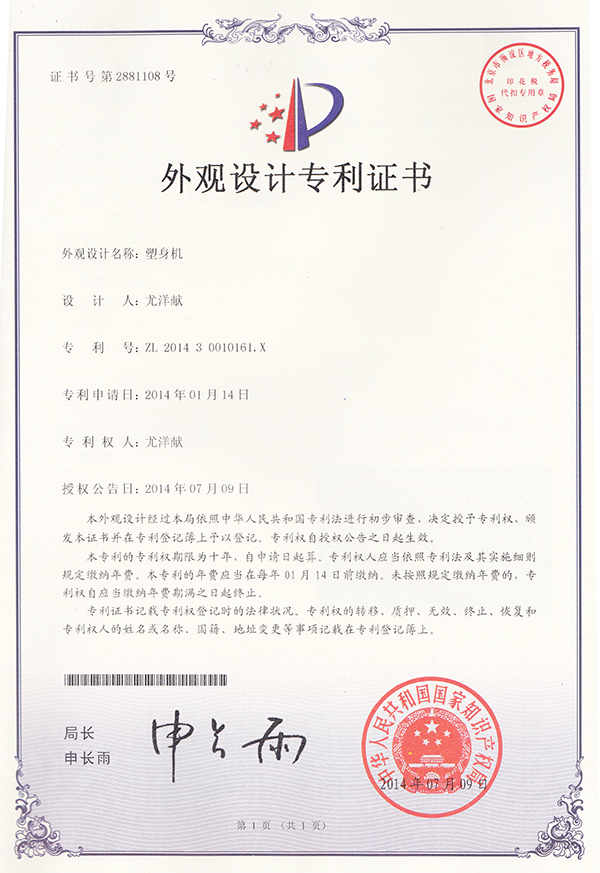

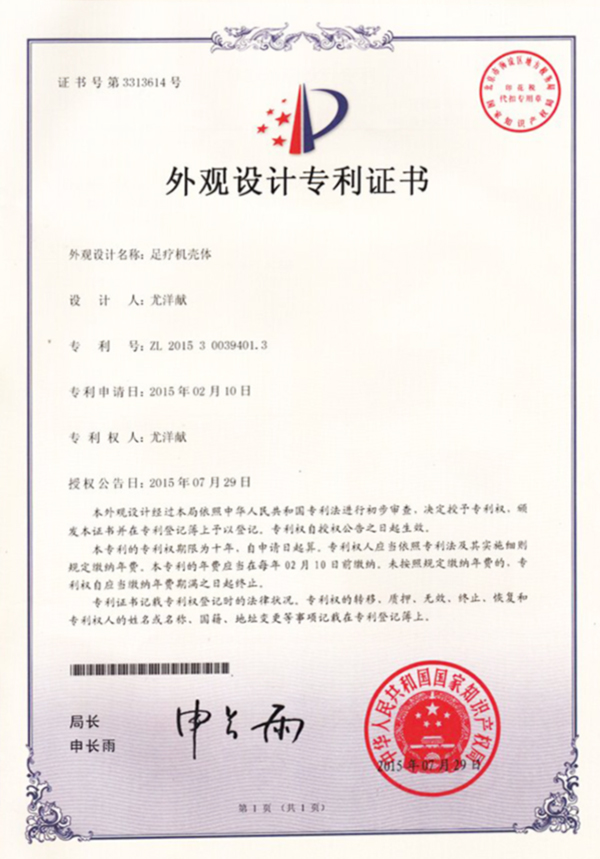

Our Foot Massager has obtained the patent certificate.	Vibration Platform Machine has obtained the patent certificate
